DescriptionMetricImperial

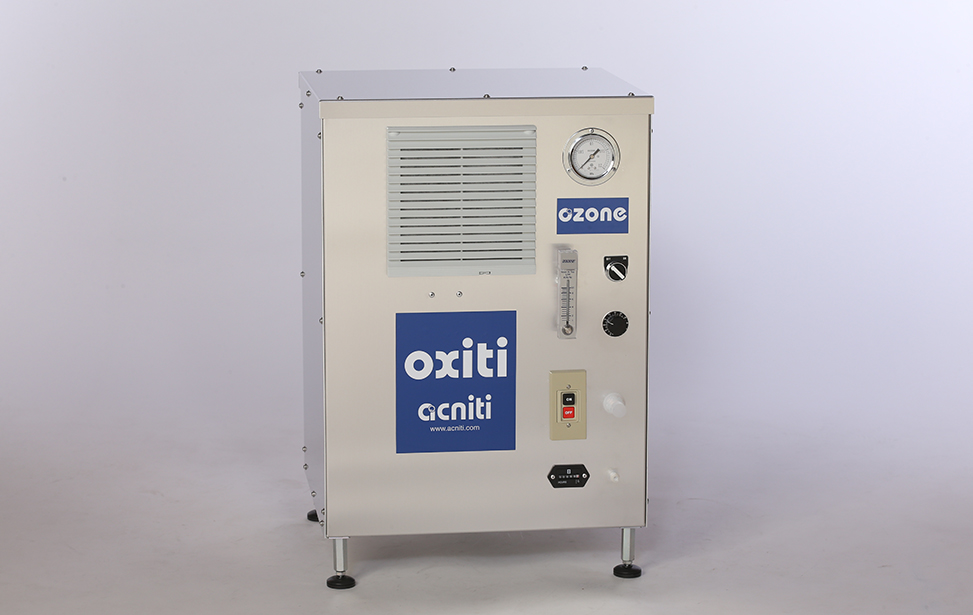

1 Model name industrial ozone, oxygen concentrator 5-LPM @ 20g/h 115V industrial ozone, oxygen concentrator 5-LPM @ 20g/h 115V
2 Model number oxiti-05-O3-20G-115 oxiti-05-O3-20G-115
AmbientMetricImperial
3 Ambient temperature minimum 10 ℃ 50 ℉
4 Ambient temperature maximum 40 ℃ 104 ℉
5 Relative humidity minimum 15 % 15 %
6 Relative humidity maximum 90 % 90 %
GasMetricImperial
7 Minimum flow / minute 1.0 Liter 0.3 Gallon
8 Maximum flow / minute 5.0 Liter 1.3 Gallon
9 Minimum flow / minute 1.0 Liter 0.3 Gallon
10 Maximum flow / minute 5.0 Liter 1.3 Gallon
11 Minimum flow / hour 60 Liter 16 Gallon
12 Maximum flow / hour 300 Liter 79 Gallon
13 Minimum flow / hour 60 Liter 16 Gallon
14 Maximum flow / hour 300 Liter 79 Gallon
15 Pressure 60 Hz 35 kPa 5 PSI
ElectricalMetricImperial
16 Unit phase Ø voltage 1 Ø 115 VAC 60 Hz 1 Ø 115 VAC 60 Hz
17 Unit power consumption 650 watts 650 watts
ConnectionsMetricImperial
18 Gas inlet 10 mm push to connect fitting or 3/8" on request 10 mm push to connect fitting or 3/8" on request
Dimensions & weightMetricImperial
19 Dim. (w) x (d) x (h) 460 x 444 x 695 mm 18.1 x 17.5 x 27.4 inch
20 weight 33.5 Kg 73.9 lbs.
21 Shipping dim. (w)x(d)x(h) 62 x 54.5 x 760 cm 24 x 21 x 299 inch
22 Shipping weight 35 Kg 77 lbs.
Remarks
23 Other remarks
  • Altitude 21 degrees up to 1500 meter (5000 ft) without degradation, contact us for more information regarding 1,500 m to 4,000 m (5,000 - 13,000 ft)

  • Storage temperature from - 20 °C to 60 °C (0°F to 140 °F)

  • unprotected or inadequately ventilated environment or improper control power may cause damage to the oxygen concentrator and is not covered under warranty.
