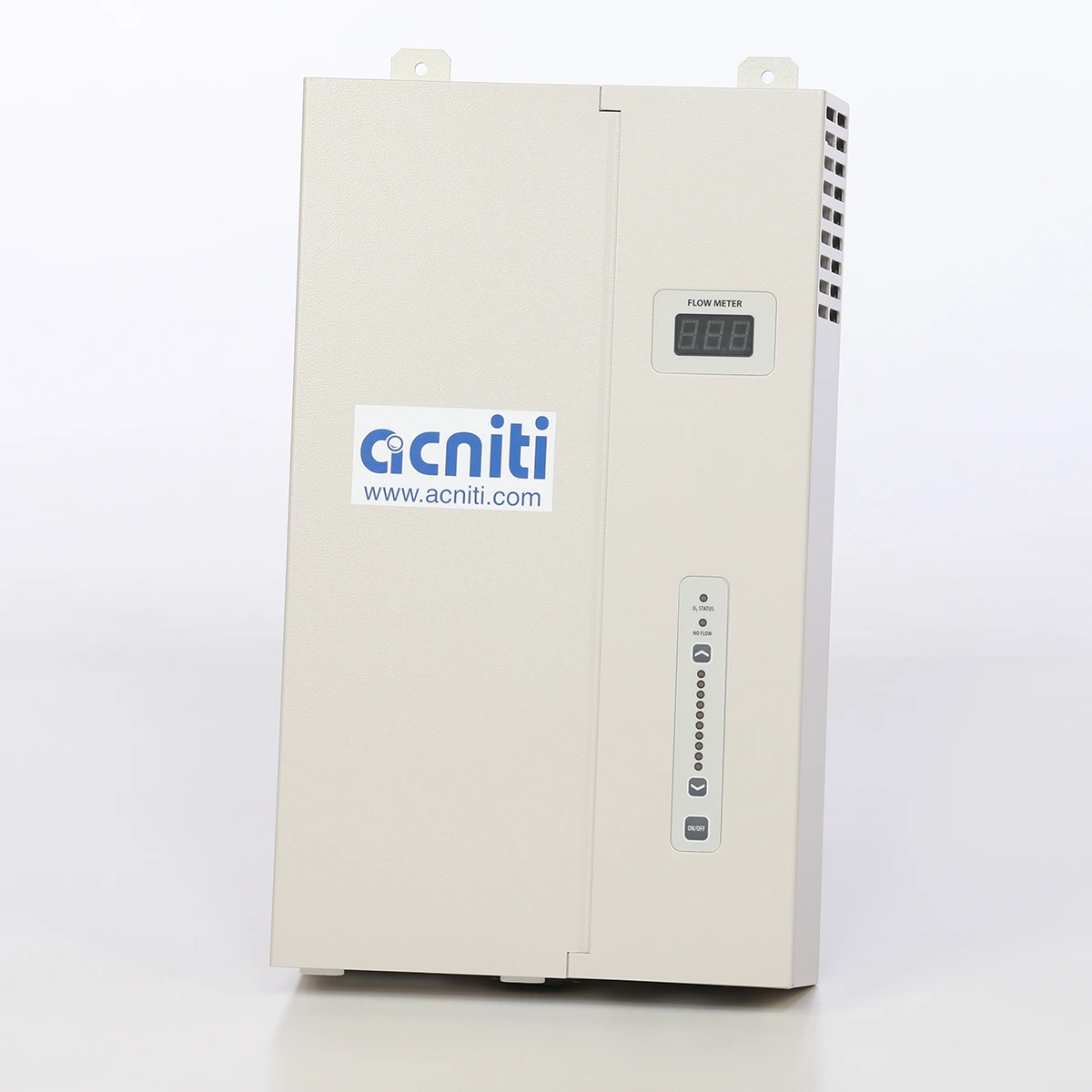

  • Reliable lab-scale corona discharge ozone generators 12 gram per hour
  • high quality 5Gram ozone generator, with flow amp en pressure meter front view
  • high quality 5Gram ozone generator, stainless sus316 with timer back view

The Acniti Ozone Generator delivers reliable ozone output of 1, 12, or 21 g/hour in a highly compact, air-cooled design ideal for demanding water treatment and laboratory use. Unlike many competitors, it features a metal-free gas contact path, ensuring exceptionally clean ozone without contaminating particles.

With stable performance even in elevated temperatures and an efficient discharge cooling system, it's trusted by research institutes and industry professionals alike. Installation and integration are straightforward—the device operates on oxygen or dried air, along with basic power, and offers options for external control and customizable flow meters, making it versatile for a wide range of applications. For those seeking durability, simplicity, and purity, this ozone generator stands out from traditional ozone generator models.

The ozone generators seamlessly integrate with Acniti’s Oxiti series, featuring the Oxiti 01 for 1g/h, Oxiti 05 for 12g/h, and Oxiti 8 for 21g/h ozone output, enabling flexible combinations for small to large-scale operations. The compact air-cooled design and metal-free gas path ensure optimal performance and easy installation with Oxiti systems, whether used for research, water treatment, or industrial applications. Built-in compatibility and customizable flow meters allow rapid scaling to match application requirements, while maintaining high ozone purity and reliability.

Ozone generators

  • Compact ozone generator which is complete with flow meter
  • Industrial or Research air-cooled ozone generator
  • Ozone generation rate is 1, 12 or 21g/h, air-cooled type, compact, and highly functional!
  • Easy-to-use industrial ozone generator! Ozone generation quantity

specifications

  • Model nameO3 generator 12g
    Model numberO3_ozone_12gh
    Spec sheetO3 generator 12g
  • Model nameO3 generator oziti 5g
    Model numberO3_generator_oziti_5g
    Spec sheetO3 generator oziti 5g
    AmbientMetricImperial
    Ambient temperature maximum48 ℃118 ℉
    Electrical
    Unit phase Ø voltage100 ~ 240 Volt
    Unit power consumption90 Watt
    Connections
    Gas inlet6 mm
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)190 x 260 x 285 mm7.5 x 10.2 x 11.2 inch
    weight5 Kg11.0 lbs.
  • Model nameO3 generator 1g
    Spec sheetO3 generator 1g
    AmbientMetricImperial
    Ambient temperature minimum2 ℃36 ℉
    Ambient temperature maximum40 ℃104 ℉
    Relative humidity maximum92 %92 %
    GasMetricImperial
    Minimum flow / minute0.1 Liter0.0 Gallon
    Maximum flow / minute1.0 Liter0.3 Gallon
    Minimum flow / hour6.0 Liter1.6 Gallon
    Maximum flow / hour60 Liter16 Gallon
    Pressure 0 kPa0 PSI
    Pressure 36 kPa5 PSI
    Gas qualityDried Air or Oxygen must be free from dust and oil.
    Gas remarkOxygen from an oxygen concentrator Oxiti-01 or dry air.
    Electrical
    Unit phase Ø voltage100-230 Volt
    Unit power consumption26 Watts
    Wetted partsKynar, Teflon, and Quartz materials.
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)372 x 182 x 104 mm14.6 x 7.2 x 4.1 inch
    weight2.6 Kg5.7 lbs.
    Shipping dim. (w)x(d)x(h)56 x 37 x 22 cm22 x 15 x 9 inch
    Shipping weight4 Kg9 lbs.
    • Ozone output is adjustable via a dial.
