  • Pool cleaning: swim puriti O2 nanobubble generator

The Swim Puriti system consists of two components. The Swim Puriti unit and a commercial rated oxygen concentrator which produces up to 95% pure oxygen out of the air.

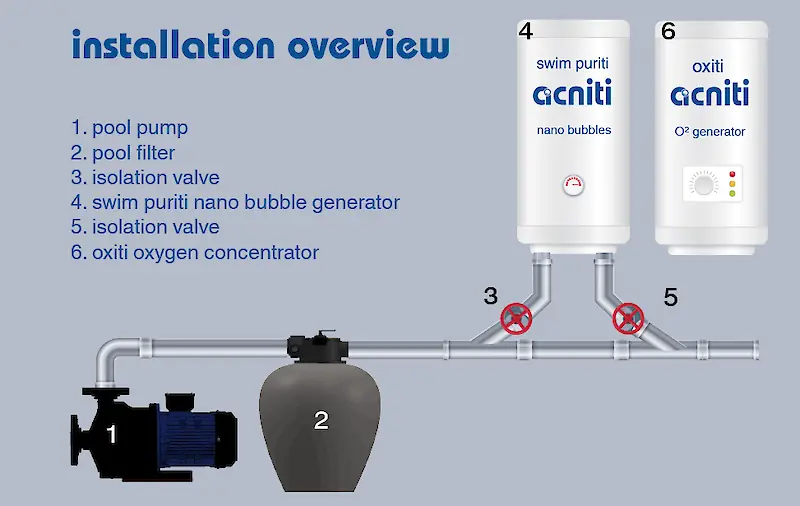

The Swim Puriti can easily be adapted to an existing or new recirculation system in swimming pools. A by-pass loop is created right after the pool or spa filter and heater. Using PVC plumbing. The injection point of the oxygen is directed downstream after the pool heater on the final return line back to the pool.

The Swim Puriti is ozone ready! and at a later date it can easily be expanded with an ozone generator, without having to re-plumb the system. With the proper ozone system, it will adapt in-between the oxygen concentrator and the Swim Puriti.

Swim Puriti: swimming pool nanobubble technology for healthy chemical free swimming.

  • When oxygen is combined with ozone, it greatly increases the disinfecting and oxidation potential
  • Breakdown of chloramine odors and other organic materials
  • Reduces the amount of pH correction chemicals
  • Provides enriched air quality
  • Greatly reduces the use of traditional pool and spa chemicals by 50 to 100%
  • Ozone delivers up to 3200 times stronger disinfection and Oxidation than Chlorine
  • Provides a safer and more natural swimming environment
  • Soft and silky skin upon leaving the pool or spa
  • Great for people with hypoallergenic skin issues
  • No chlorine smell
  • Experience crystal clear swim water

Model

specifications

  • Model nameSwim puriti 727 O2
    Model numberturbiti_727_wallmount_galvanized-box_swim-puriti
    Spec sheetSwim puriti 727 O2
    LiquidMetricImperial
    Minimum flow / minute 75 Liter20 Gallon
    Maximum flow / minute 150 Liter40 Gallon
    Minimum flow / hour 4.5 M3158.9 CF
    Maximum flow / hour 9.0 M3317.8 CF
    water temperature minimum-20 ℃-4 ℉
    water temperature maximum50 ℃122 ℉
    Strainer availability and sizeNo strainer, particles up to 2 mm
    Recommended inlet filter(s)Small pump inlet filter series
    AmbientMetricImperial
    Ambient temperature minimum-20 ℃-4 ℉
    Ambient temperature maximum50 ℃122 ℉
    Relative humidity minimum0 %0 %
    Relative humidity maximum100 %100 %
    GasMetricImperial
    Minimum flow / minute2.5 Liter0.7 Gallon
    Maximum flow / minute5.0 Liter1.3 Gallon
    Minimum flow / hour150 Liter40 Gallon
    Maximum flow / hour300 Liter79 Gallon
    Pressure minimum 50 kPa7 PSI
    Pressure maximum 350 kPa51 PSI
    Gas qualityOxygen for optimal results
    Gas remarkThe mentioned pressures are recommended pressures for bubble generation. The product itself can withstand pressures up to 400 kPa.
    Electrical
    Unit power consumptionNo pump included with this product. Estimated power consumption 750-1000 watts.
    Wetted partsnylon based resins, PVC, EPDM rubber
    Pump modelEasy to integrate with existing low head pool pumps.
    Pump pressure settingThis product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
    ControlManual by pressure gauche
    Connections
    Water inletRigid Rc 1" female coupling with thread
    Water outletrigid 3/4" female coupling with thread
    Gas inlet10 mm push to connect fitting or 3/8" on request
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)644 x 200 x 1040 mm25.4 x 7.9 x 40.9 inch
    weight26.5 Kg58.4 lbs.
    Shipping dim. (w)x(d)x(h)67 x 37 x 107 cm26 x 15 x 42 inch
    Shipping weight35 Kg77 lbs.
    • Easy to integrate with existing swimming pool pumps
  • Model nameSwim puriti 737 O2
    Model numberturbiti_737_wallmount_galvanized-box_swim-puriti
    Spec sheetSwim puriti 737 O2
    LiquidMetricImperial
    Minimum flow / minute 150 Liter40 Gallon
    Maximum flow / minute 400 Liter106 Gallon
    Minimum flow / hour 9.0 M3317.8 CF
    Maximum flow / hour 24 M3848 CF
    water temperature minimum-20 ℃-4 ℉
    water temperature maximum50 ℃122 ℉
    Strainer availability and sizeNo strainer, particles up to 2 mm
    Recommended inlet filter(s)Medium pump inlet filter series
    AmbientMetricImperial
    Ambient temperature minimum-20 ℃-4 ℉
    Ambient temperature maximum50 ℃122 ℉
    Relative humidity minimum0 %0 %
    Relative humidity maximum100 %100 %
    GasMetricImperial
    Minimum flow / minute5.0 Liter1.3 Gallon
    Maximum flow / minute8.0 Liter2.1 Gallon
    Minimum flow / hour300 Liter79 Gallon
    Maximum flow / hour480 Liter127 Gallon
    Pressure minimum 50 kPa7 PSI
    Pressure maximum 350 kPa51 PSI
    Gas qualityOxygen for optimal results
    Gas remarkThe mentioned pressures are recommended pressures for bubble generation. The product itself can withstand pressures up to 500 kPa.
    Electrical
    Unit power consumptionNo pump included with this product. Estimated power consumption 750-1000 watts.
    Wetted partsnylon based resins, PVC, EPDM rubber
    Pump modelEasy to integrate with existing low head pool pumps.
    Pump pressure settingThis product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
    ControlManual by pressure gauche
    Pump
    @optionGrundfos CM10-1
    @optionGrundfos CM15-1
    @optionEbara pump DWO-400
    Connections
    Water inletRigid Rc 2" female coupling with thread
    Water outletrigid 1" female coupling with thread
    Gas inlet10 mm push to connect fitting or 3/8" on request
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)644 x 200 x 1040 mm25.4 x 7.9 x 40.9 inch
    weight26.5 Kg58.4 lbs.
    Shipping dim. (w)x(d)x(h)67 x 37 x 107 cm26 x 15 x 42 inch
    Shipping weight35 Kg77 lbs.
    • Easy to integrate with existing swimming pool pumps
  • Model nameSwim puriti 747 O2
    Model numberturbiti_737_wallmount_galvanized-box_swim-puriti
    Spec sheetSwim puriti 747 O2
    LiquidMetricImperial
    Minimum flow / minute 400 Liter106 Gallon
    Maximum flow / minute 600 Liter159 Gallon
    Minimum flow / hour 24 M3848 CF
    Maximum flow / hour 36 M31,271 CF
    water temperature minimum-20 ℃-4 ℉
    water temperature maximum50 ℃122 ℉
    Strainer availability and sizeNo strainer, particles up to 2 mm
    Recommended inlet filter(s)Medium pump inlet filter series
    AmbientMetricImperial
    Ambient temperature minimum-20 ℃-4 ℉
    Ambient temperature maximum50 ℃122 ℉
    Relative humidity minimum0 %0 %
    Relative humidity maximum100 %100 %
    GasMetricImperial
    Minimum flow / minute14 Liter3.7 Gallon
    Maximum flow / minute16 Liter4.2 Gallon
    Minimum flow / hour840 Liter222 Gallon
    Maximum flow / hour960 Liter254 Gallon
    Pressure minimum 50 kPa7 PSI
    Pressure maximum 350 kPa51 PSI
    Gas qualityOxygen for optimal results
    Gas remarkThe mentioned pressures are recommended pressures for bubble generation. The product itself can withstand pressures up to 400 kPa.
    Electrical
    Unit power consumptionNo pump included with this product. Estimated power consumption 1500-2000 watts.
    Wetted partsnylon based resins, PVC, EPDM rubber
    Pump modelEasy to integrate with existing low head pool pumps.
    Pump pressure settingThis product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
    ControlManual by pressure gauche
    Connections
    Water inletRigid Rc 2" female coupling with thread
    Water outletrigid 1.5" female coupling with thread
    Gas inlet10 mm push to connect fitting or 3/8" on request
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)644 x 200 x 1040 mm25.4 x 7.9 x 40.9 inch
    weight26.5 Kg58.4 lbs.
    Shipping dim. (w)x(d)x(h)67 x 37 x 107 cm26 x 15 x 42 inch
    Shipping weight35 Kg77 lbs.
    • Easy to integrate with existing swimming pool pumps
